Step 1:

You will need:

1. Stanley knife
2. Screwdriver

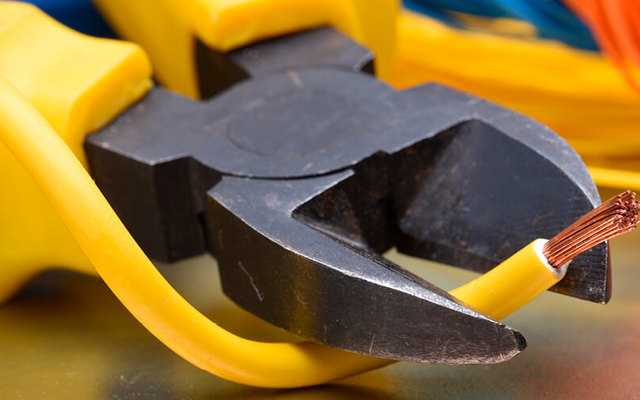

3. Wire stripper

Step 2:

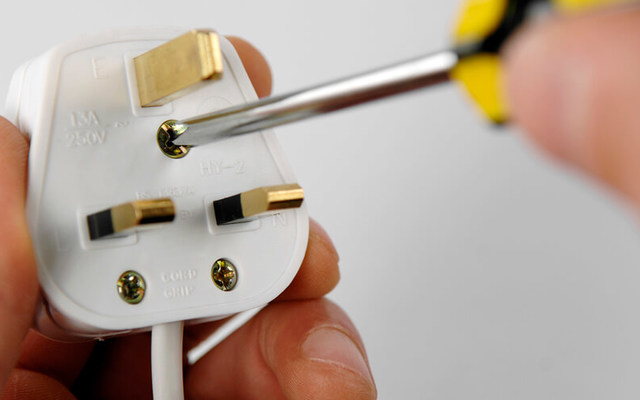

Use a screwdriver to open the plug.

Step 3:

• Appliances that do not need to be earthed have 2 pins.
• Remember, each wire must be long enough to reach the correct pin.
• Cut outer insulation where wires enter the plug.
• Measure the correct spot to cut the insulation and mark it.
• Score the outer insulation with the Stanley knife; take care not to cut into the wires.
• Wriggle the outer insulation about until you see a clean break. Remove it using pliers.

Step 4:

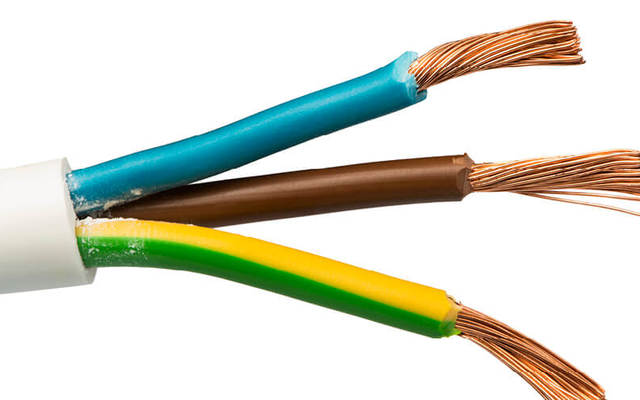

• Trim each individual wire to the correct length and remove about 5mm of the insulation.

• Twist the copper wires and place them into the relevant terminals.
• Use screws to keep them in place.

Step 5:

Close the plug case and tighten with a screwdriver.
